If you place deli cabinets, air curtain cabinets, and cake cabinets based solely on "where the socket is," the result is often: narrower aisles, cross-contaminated cooling, confusing restocking routes, and one-way customer traffic.
Xueshuang breaks down store refrigeration layout into a simple formula: Right proportion of three cabinet types × Right placement × Right aisle spacing = more output and less waste in the same floor area.
1. Remember a "Space Allocation Rule of Thumb"
In a typical comprehensive store (deli + fresh produce/dairy + bakery), the recommended floor-area ratios for the three cabinet types are roughly:
| Cabinet Type | Recommended Area Ratio | Optimal "Function Zone" | Key Clearance |
|---|---|---|---|
| Cake/Dessert Cabinet (curved/straight refrigerated display) | 15%–20% | Entry visual zone / Near checkout flow (capture impulse buys) | Front aisle ≥ 90–100cm |
| Deli Cabinet (flat refrigerated/hot-cold combo) | 20%–25% | Against the wall in a row, or as a "divider line" (clear deli zone boundary) | Back heat dissipation ≥ 10cm; keep top unobstructed |
| Air Curtain Cabinet (upright open/semi-open refrigerated) | 35%–40% | Along main aisle sides, or back-to-back (convert traffic into dwell time) | Front zone ≥ 100–120cm; back maintenance ≥ 30cm |
* These are empirical ranges. Final layout must account for store columns, doors, and fire escape routes. Xueshuang can help finalize based on your floor plan.

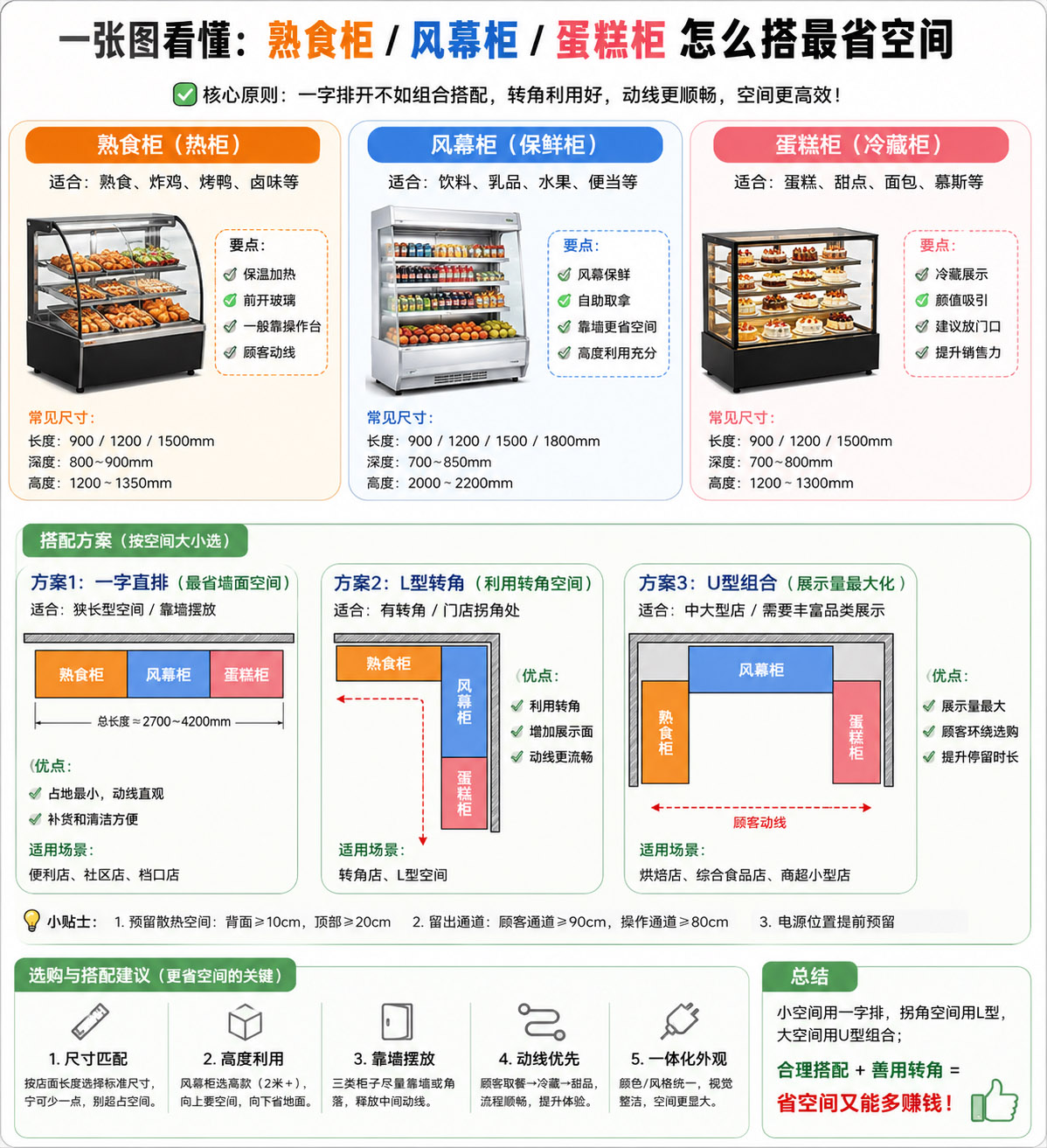

2. "Logic Diagram": Three Space-Saving Classic Configurations
① L-Shape Layout (40–60m², most common)
How: Cake cabinet near entrance → along the wall, turn to deli cabinet → air curtain cabinet along main aisle.
✔ Traffic flow is "circle back to exit" — minimal backtracking
✔ Cake at first glance, deli in the aroma zone, dairy in the main aisle
⚠ Keep the inner corner clear; maintain corner radius ≥ 80–90cm
② U-Shape Enclosure (60–100m², maximize wall space)
How: Place cake / deli / air curtain cabinets against three walls, leaving the center open for a sales floor.
✔ Clear zone separation; staff standing in the center can monitor all three areas
✔ Maximum wall utilization
⚠ Central open area should be ≥ 8m², or it will feel cramped
③ Island Cabinet + Wall Combination (100m²+, maximize display surface)
How: Double-sided air curtain island cabinet in the center, deli cabinet + cake cabinet along the walls.
✔ Dual-sided island display increases dwell time
✔ Wall-mounted units extend product categories without clutter
⚠ Aisle around island cabinet ≥ 120cm — avoid shopping cart collisions
3. Five "Millimeter-Level Details" Often Overlooked
No gaps between adjacent cabinets: Sharing side panels saves 5–8cm per unit — that adds up to feet across a row.
Don't leave double back clearance for back-to-back units: Two air curtain cabinets back-to-back need only one maintenance passage, saving one cabinet's footprint.
Don't place deli cabinets near drafty entrances: Cold air blown away = harder compressor work = louder and more energy-hungry.
Don't block the entrance with cake cabinets: It cuts off the "first-look panorama," discouraging customers from entering.
Wider aisles aren't always better: Reserve extra width for "main aisles" and "checkout buffer zones"; secondary traffic lanes just need to be passable.
4. Just Send These 3 Things, and Xueshuang Will Give You a "One-Page Layout Plan"
📐 Store dimensions (hand-drawn OK: length, width + door/window/column positions + approximate vent/outlet locations)
🛒 What you plan to sell (deli-focused? bakery-focused? or comprehensive fresh + deli?)
📏 Preferred aisle feel: compact / comfortable / spacious (we'll estimate based on your foot traffic)
📞 Contact Xueshuang Refrigeration for a free layout recommendation diagram (on-site survey available): leave a message or call to schedule
📍 Production Base: Longhu, Xinzheng, Zhengzhou · Henan Xueshuang Industrial
Note: This article provides spatial layout methodology and recommendations. Final placement must comply with store fire safety, food safety, and equipment manual requirements.
